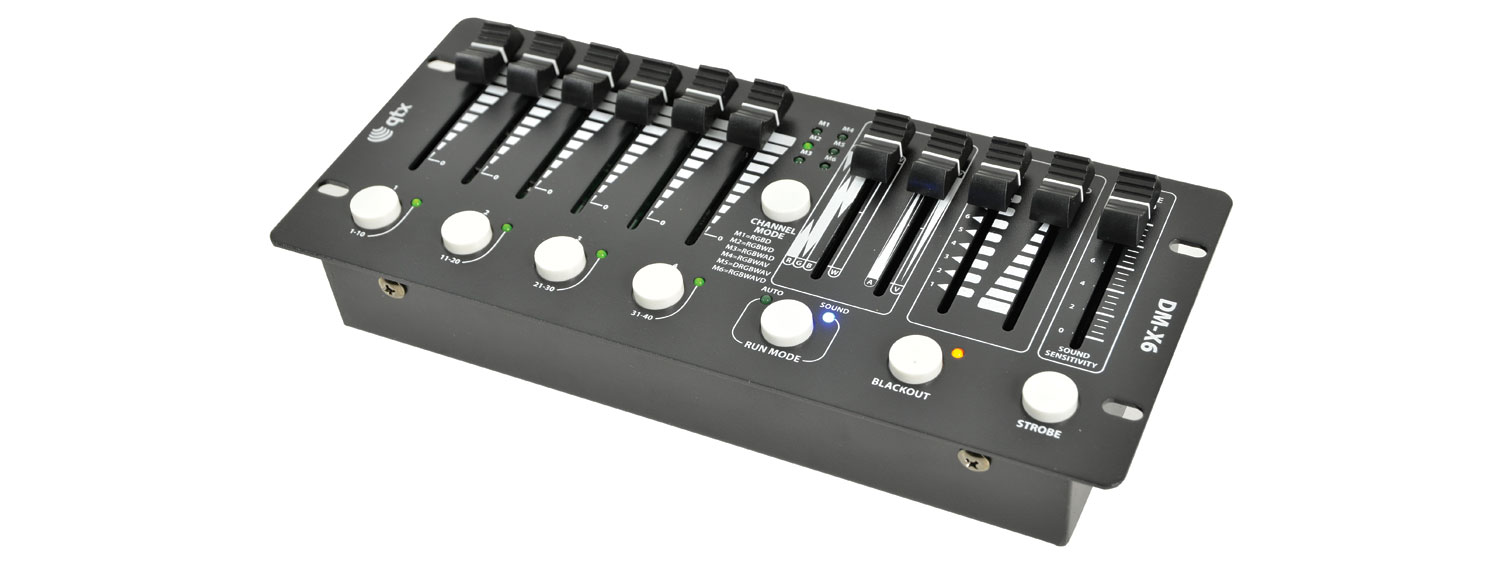

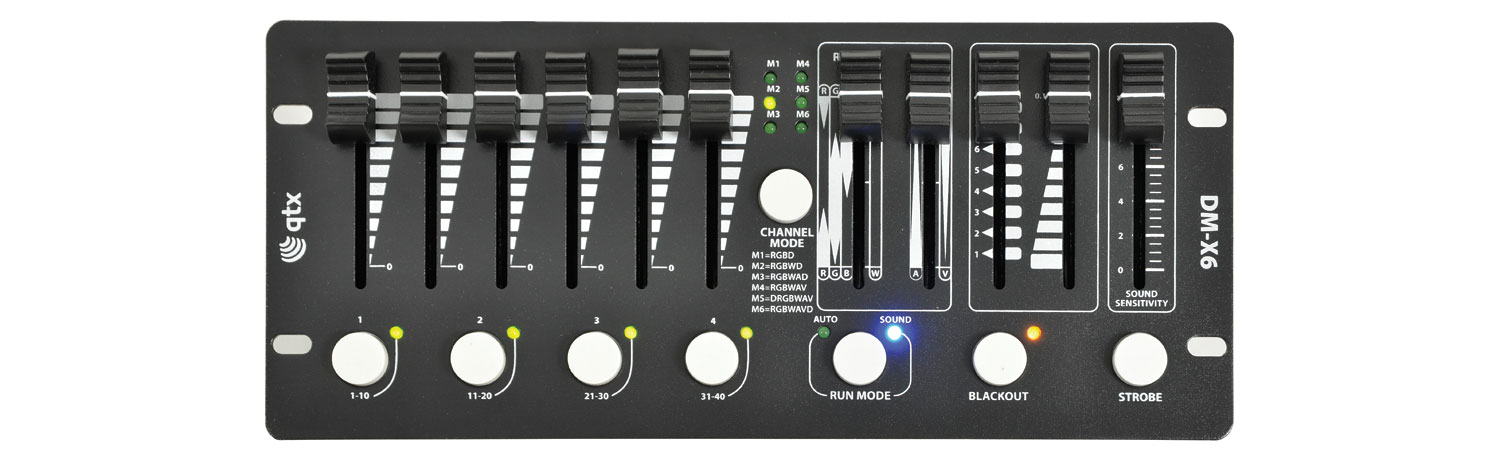

DM-X6 MINI DMX PAR CONTROLLER
A small yet versatile DMX PAR can controller for 3, 4, 5 and 6-colour fixtures. Six channel faders can be configured to 6 different arrangements of R, G, B, W, A, V and dimmer control. Furthermore, a mix fader enables smooth manual scrolling of colours. Features sound activated option with sensitivity control or auto mode with 8 MAC programs and speed control offer a choice of sequences with additional manual strobe and blackout functions. Free standing or wall-mounted operation for comprehensive control over stage lighting or architectural installations.
- 4 pages of up to 6 channels
- Built-in programs and sound activation
- Independent strobe and blackout functions
| Power supply | 9-12Vdc, 800mA adaptor (supplied) |
|---|---|
| Controls | R, G, B, W, A, V/D, mix, MAC, speed, strobe/sensitivity |
| Mode(s) | RGBD, RGBWD, RGBWAD, RGBWAV, DRGBWAV, RGBWAVD |

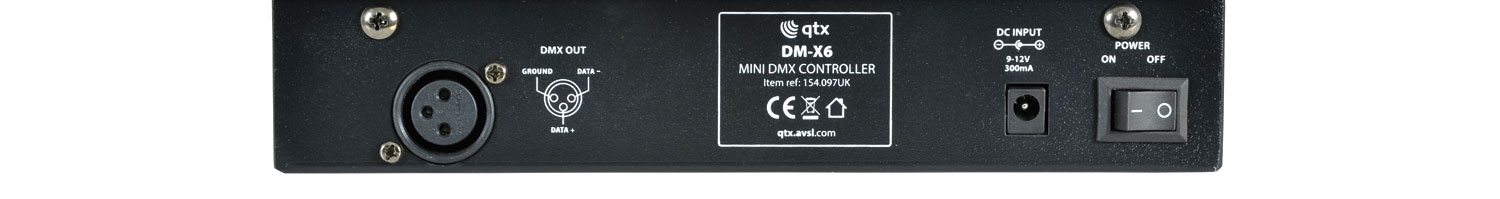

| Output | DMX (XLRF) |
|---|---|
| Dimensions | 248 x 110 x 58mm |
| Weight | 1.31kg |
”
