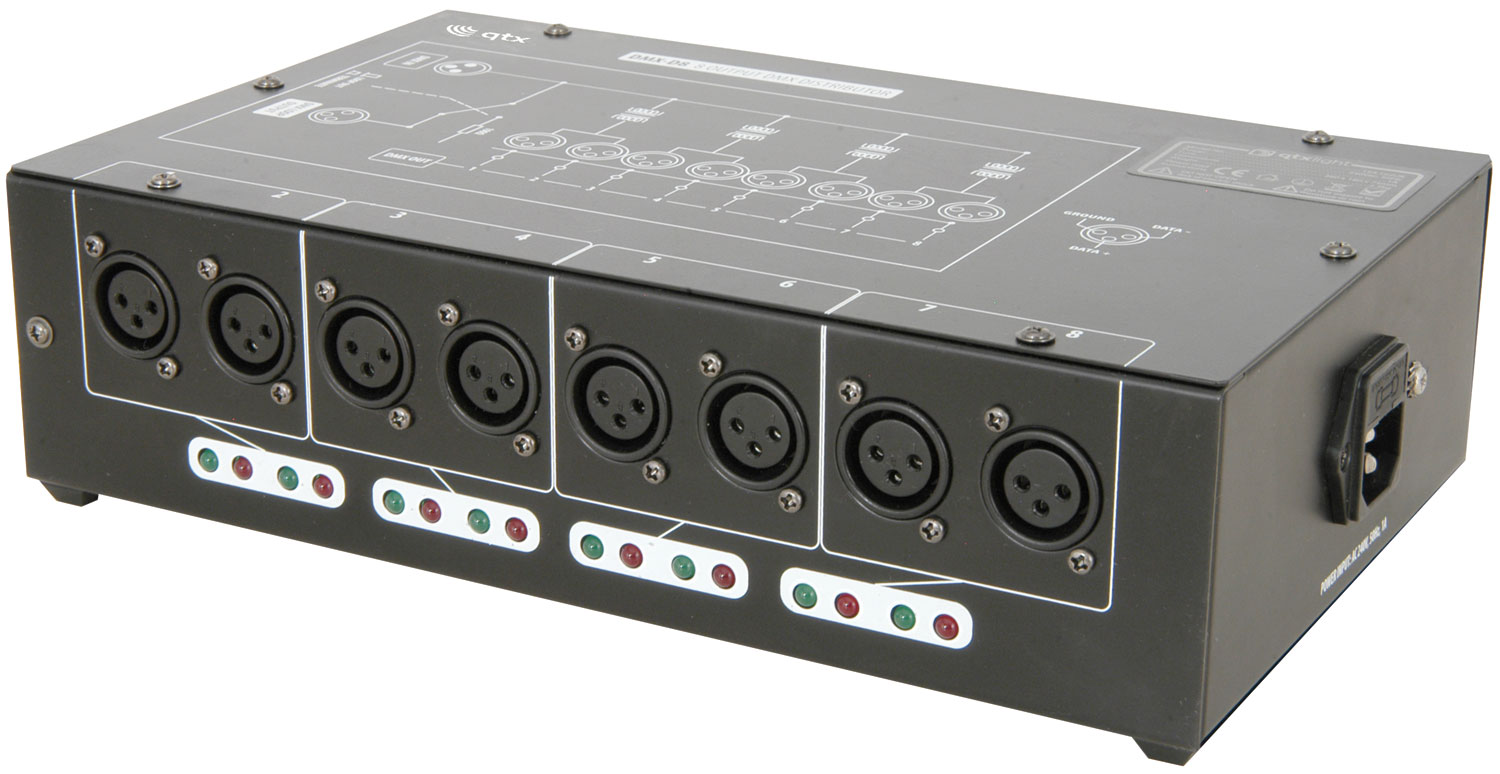

DMX-D8 – 8 WAY DMX BOOSTER/DISTRIBUTOR
This 8 way DMX Booster/distributor has one input, loop through and four electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area or to isolate individual fixtures making it quick and easy to highlight and fix without the whole system failing.

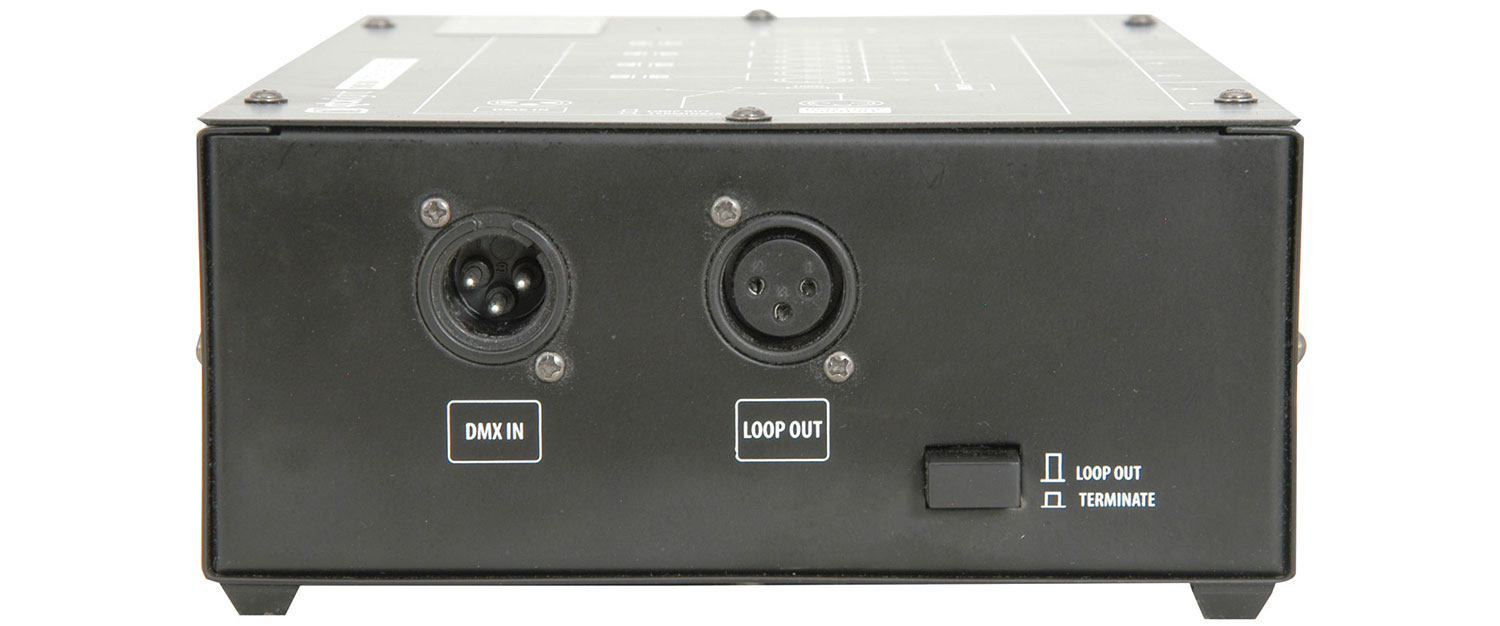

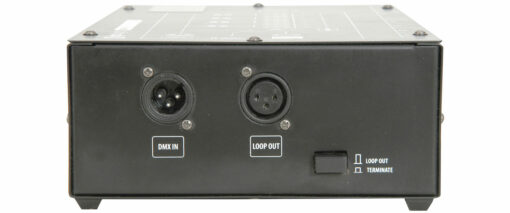

- DMX Loop out or DMX terminated switch

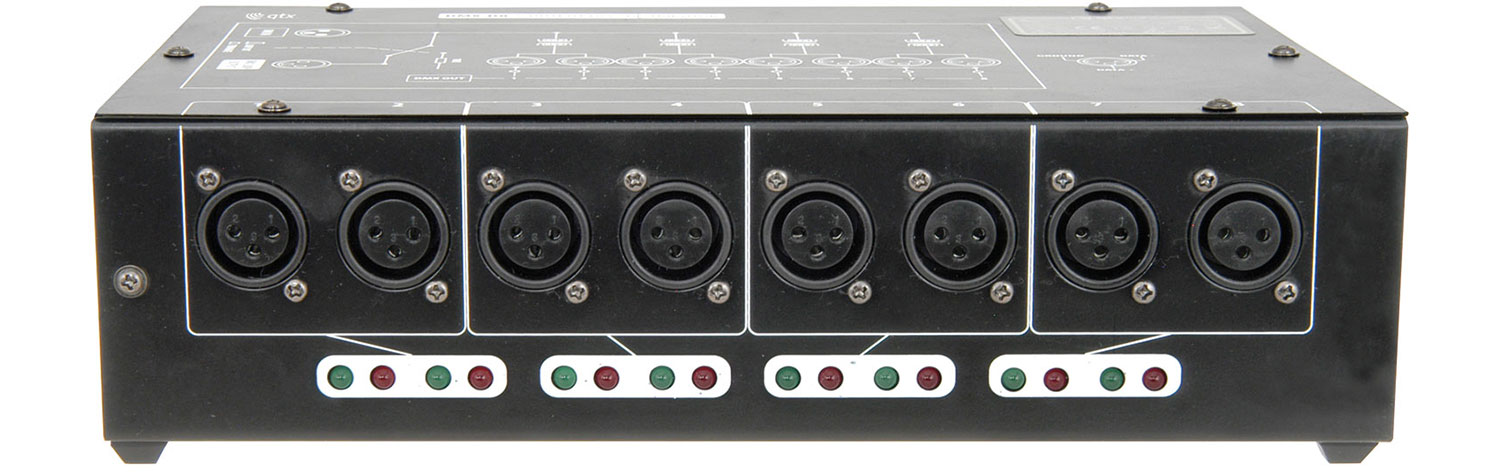

- 8 x Opto isolated DMX outputs
- LED data indicators
- Powered by mains to maintain a strong signal
| Power supply | 230Vac, 50Hz (IEC) |
|---|---|
| DMX inputs | 1 |
| DMX outputs | 8 |
| Dimensions | 280 x 180 x 75mm |
|---|---|
| Weight | 2.3kg |
”
