DS123-RDM

RDM compatible DMX splitter: splits mains power and DMX input into 2 optically separate outputs. Compact and robust, equipped with PowerCON / XLR 3pin.

• The perfect solution for many DMX-line problems: this compact DMX-splitter divides any DMX-chain in 2 separate lines that will not interfere with each other. Problems on 1 line will not influence the other line!
• Maximum security, thanks to complete galvanic isolation between all DMX in/outputs
• 100% RDM compatible for bidirectional DMX-communication
• The booster function makes your DMX-installation more reliable and flexible to set up.
• Specially designed for professionals:
  • Small size: can be hidden anywhere
  • Very robust construction: perfect for the rental applications

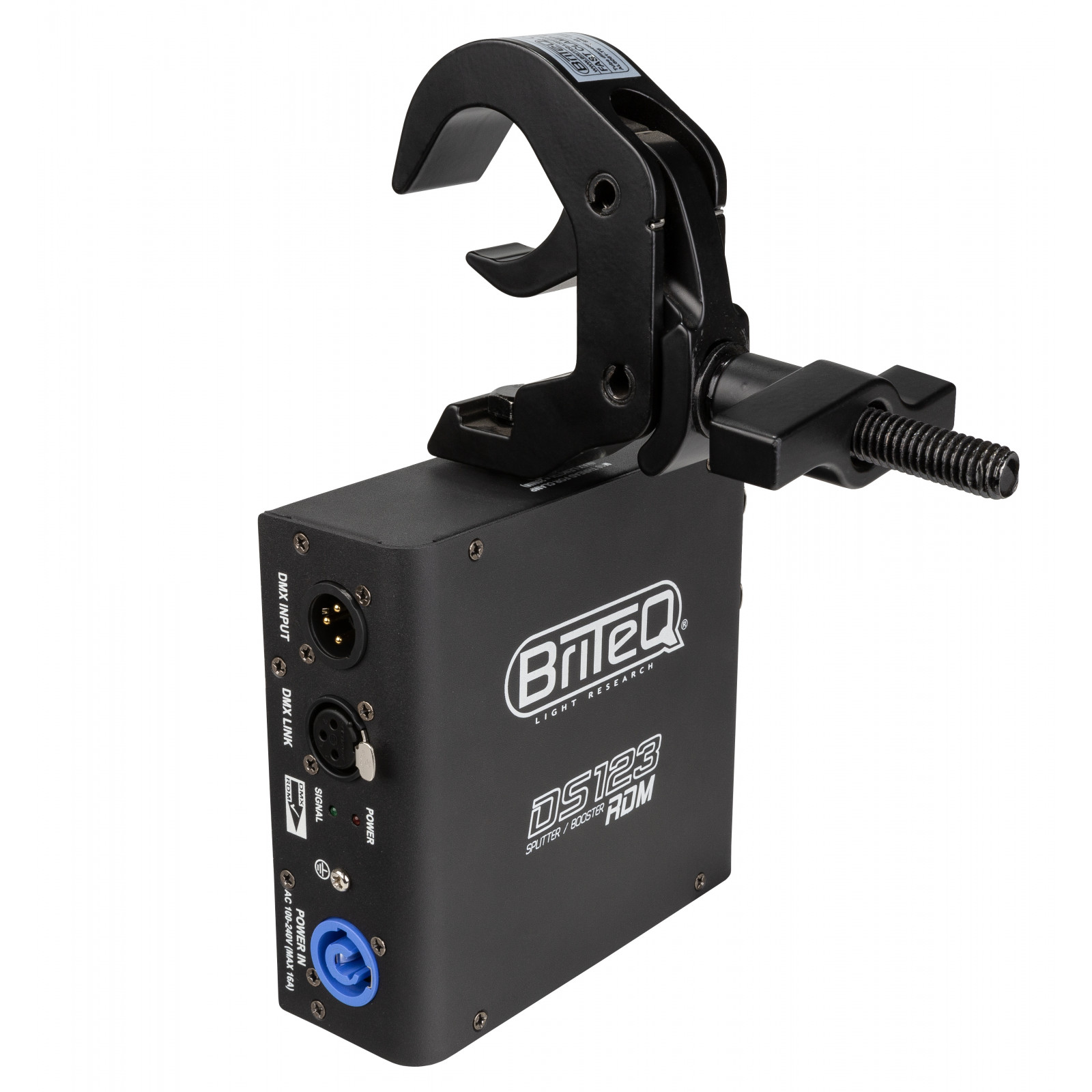

  • Can be fitted with any standard truss clamp with M10 thread: easy truss installation
• Adapted for use with HILEC® COMBI-cables (combined power + DMX)!
• Connections:
  • 1 input: DMX 3pin (+ DMX pass-through) & 16A PowerCON-compliant Seetronic® connector.

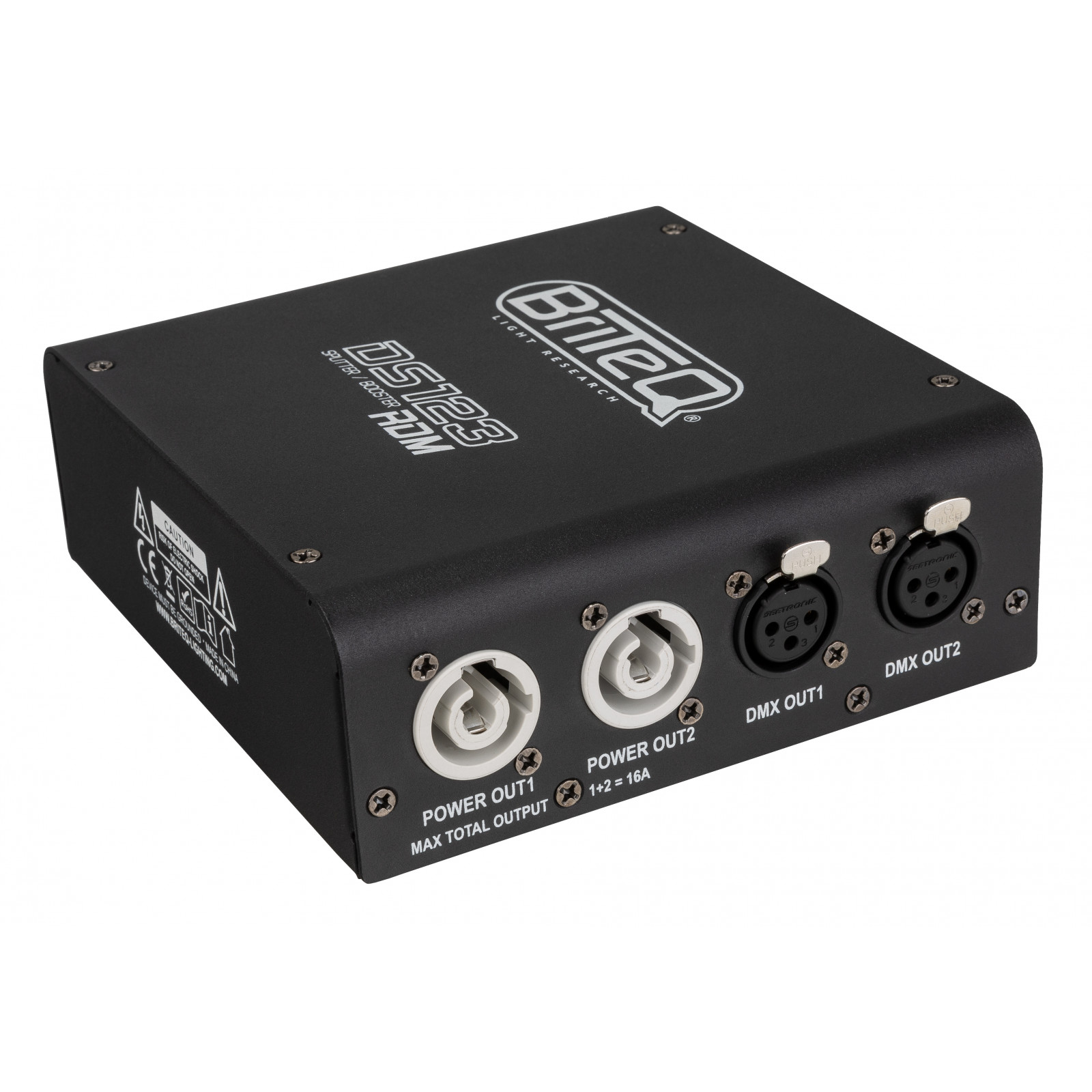

  • 2 outputs, each with: DMX 3pin + 16A PowerCON-compliant Seetronic® connector.
• There is also a model (DS125-RDM) equipped with 16A PowerCON TRUE1-compliant and XLR 5pin connectors
• Power + signal present indicators.
• Internal power supply 100-240Vac


  General : Dimensions (cm)	14 x 14,5 x 5
  General : Weight (kg)	0.75
  General : Powerinput	AC 100 – 240V, 50/60Hz
  General : Energy Label	No
  General : Power consumption W	1
  General : Color	black
  General : Display	none
  General : Fixation	M10
  General : RU	No
  General : IP rating	indoor
  Control : Protocol	DMX, RDM
  Control : programmable	No
  Control : upgradable software	No
  Connections : input	3 pin XLR, rdm, PowerCon&reg Related products Färgfilter HT119 Dark Blue 88,00 kr Add to cart LED-Miljöljus / Arkitektur Ljusslinga Rubberlight 44m Vit 1220,00 kr Add to cart LED-Miljöljus / Arkitektur Ljusslinga Rubberlight 9m Grön 280,00 kr Add to cart Färgfilter Färglins Pinspot Rosa 9,60 kr Add to cart Ljus UV-Set Komplett 120cm 440,00 kr Add to cart Glödljus / Urladdning Par-56 Färgfilterram Silver 60,00 kr Add to cart LED-Miljöljus / Arkitektur Ljusslinga Rubberlight 44m Grön 1220,00 kr Add to cart Flood / Blinders / Bars BT-RETRO 8796,00 kr Add to cart Produktsökning Start Butik Kontakta oss Login Login Username or email address * Password * Remember me Log in Lost your password? DS123-RDM 1 in stock (can be backordered) DS123-RDM quantity Add to cart
